3/4 Scale 2 Player Upright Arcade Cabinet Kit Black – Flat Pack

We currently have a 2 week lead time on orders.

Features and Further Details:

This 3/4 scale 2 player upright arcade cabinet kit is manufactured from 12mm melamine faced MDF, and precision cut on a commercial CNC machine. The 3/4 size upright arcade cabinet is in a flat pack kit form, with detailed assembly instructions showing you step-by-step how to build the cabinet. All necessary screws and fixings are provided for the assembly process. An adjustable wooden VESA mount with monitor bolts are included with the flat pack kit.

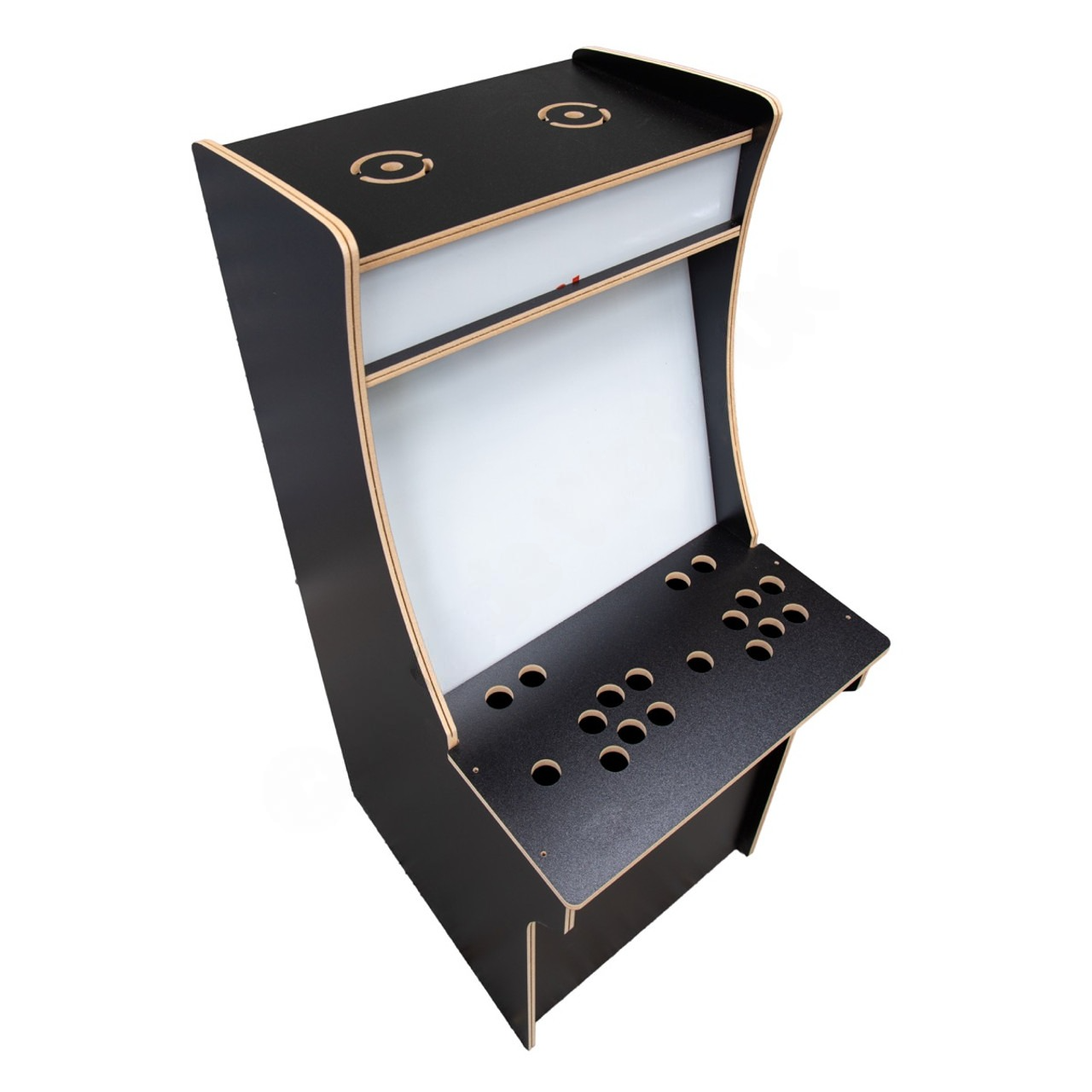

The removable control panel comes with the joystick and button holes pre-drilled for a 2 player layout. The button holes are 30mm in diameter, making the control panel compatible with many of the popular brands on the market, such as Seimitsu, Sanwa, Suzo, IL, Happ, and the classic arcade buttons.

The joystick holes are recessed under the control panel, this allows for the most popular joysticks on the market to be easily installed. Popular compatible joysticks including Sanwa, Seimitsu, SuzoHapp, Zippyy and IL. We have also included bolts for the joystick.

Each three quarter upright arcade kit has been pre-slotted 1/16” (1.58mm), that fits 1/2” (12.7mm) t-molding (t-molding not included).

This 3/4 upright flat pack arcade cabinet kit also comes supplied with a 4mm thick polycarbonate plexi for the marquee and the monitor area.

Control Panel Options:

The arcade kit can be purchased with or without a clear 4mm polycarbonate plexi to protect your artwork. Joystick and button holes are pre-cut.

You can also order this kit with a blank control panel or with a custom button layout. Leave a note in the customer comments section during checkout.

Feature Summary:

• 3/4 scale upright arcade cabinet kit

• Ideal for rooms with limited space or for kids

• Riser available to purchase separately

• Removable control panel for easy access to arcade components

• Internal shelf to store hardware components

• Adjustable monitor VESA mount bracket, made from MDF. Monitor bolts included

• Supplied with 4mm thick polycarbonate plexi for marquee and monitor area

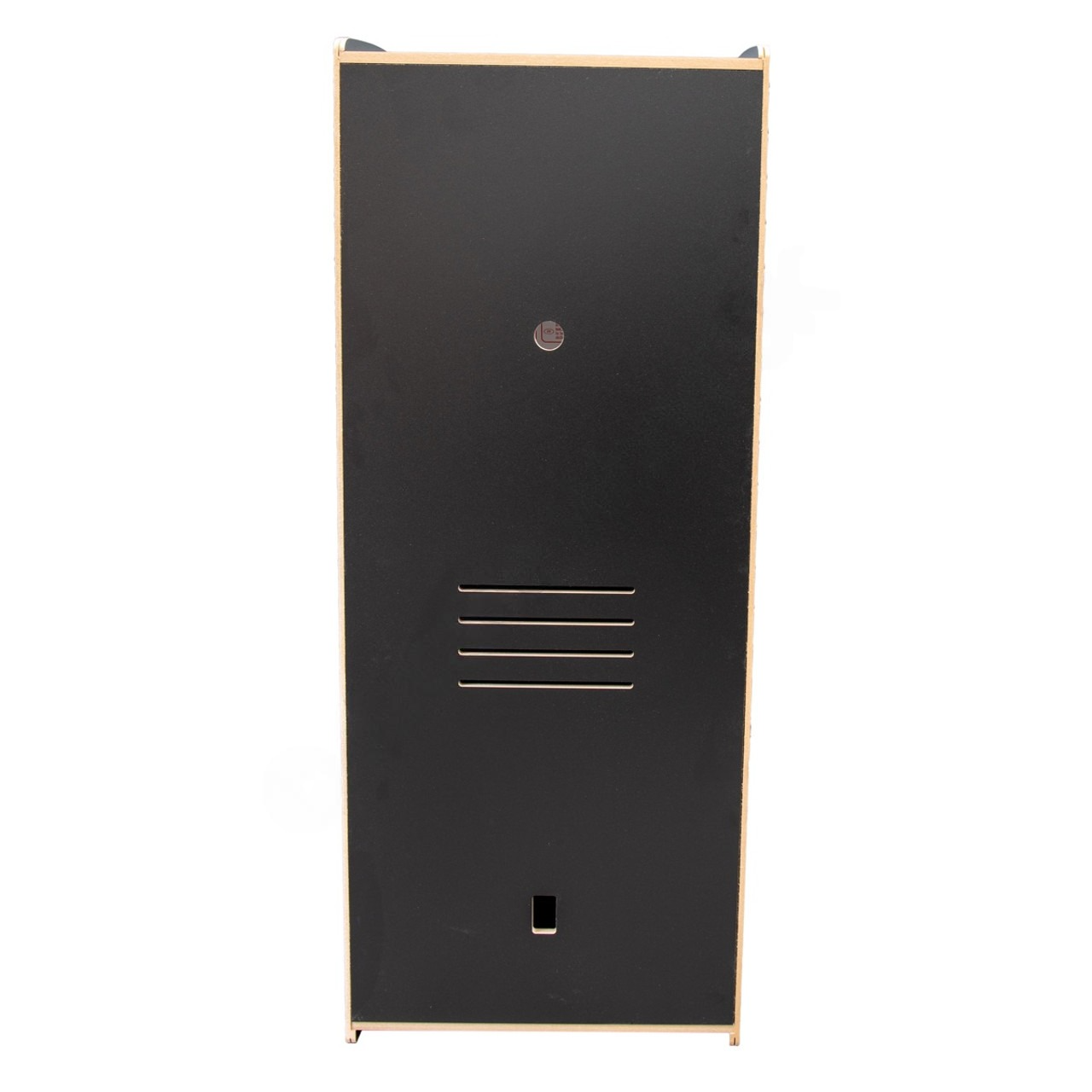

• Pre-cut cut hole at back for inlet power switch (not included)

• All assembly fixings and instruction manual included for self assembly

• Joystick bolts are included

• Suitable for various arcade components, including JAMMA and Raspberry Pi

• T-Molding slots are pre-cut

• Popular buttons such as Sanwa and Seimitsu can be installed

• Joysticks such as Sanwa and Seimitsu are compatible

• Supplied in a flat pack form for easy self assembly

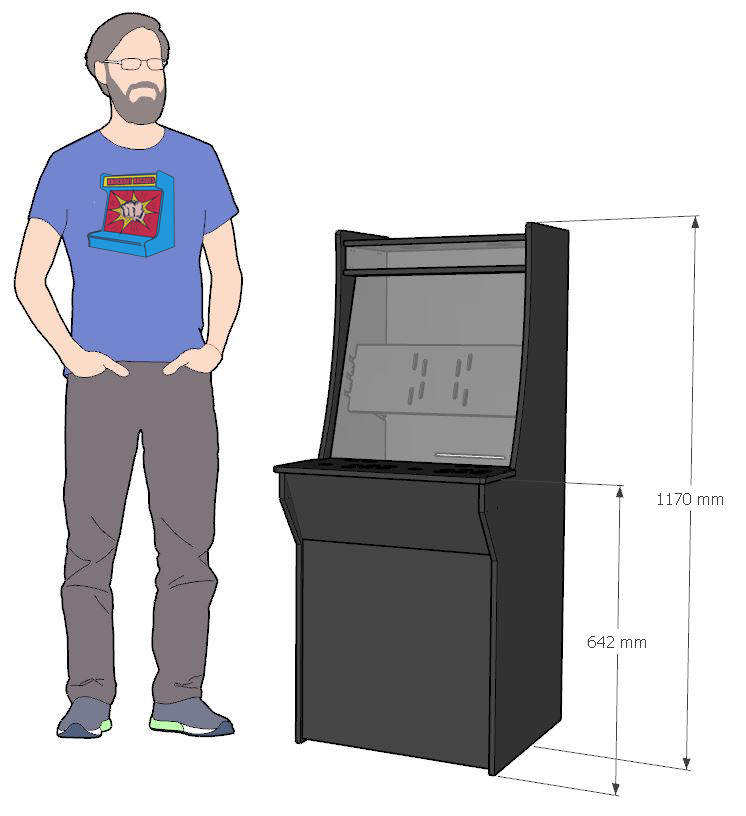

Assembled Dimensions:

46.7cm (Width) x 50.5cm (Depth) x 117cm (Height)

Monitor plexi size - 438mm x 453mm x 4mm
Marquee plexi size - 89mm x 453mm x 4mm

Monitor Compatibility:

Compatible with VESA 75mm and 100mm square hole pattern.

Screen - Maximum Size

Compatible with monitors up to:

• 20" 5:4 ratio

• 18.5" 16:9 ratio

The above monitor sizes are for guidance only. We strongly recommend you measure the outer dimensions of the monitor to ensure they do not exceed the following dimensions:

• 420 mm (h) – Maximum OUTER height

• 440 mm (w) – Maximum OUTER width

Joystick Compatibility:

Most popular joysticks will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Zippyy and illuminated joysticks. This kit IS NOT compatible with ServoStik joysticks.

Button Compatibility:

Most popular arcade buttons will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Gold Leaf and illuminated.

Number of player buttons and joystick holes

2 x Joystick holes (1 per player)

12 x Player Button holes (6 per player)

4 x Admin Button holes (2 per player)

Speaker Compatibility:

The speaker holes are designed to fit a speaker with mounting holes 75mm apart or bigger.

T-Molding Required:

Compatible with 1/2” (12.7mm) T-Molding, that fits a 1/16” (1.58mm) slot. You will require 21ft (6.5m) of T-Molding to complete the arcade kit.

Please note that gaming hardware is not included. You will need to buy the hardware separately.
