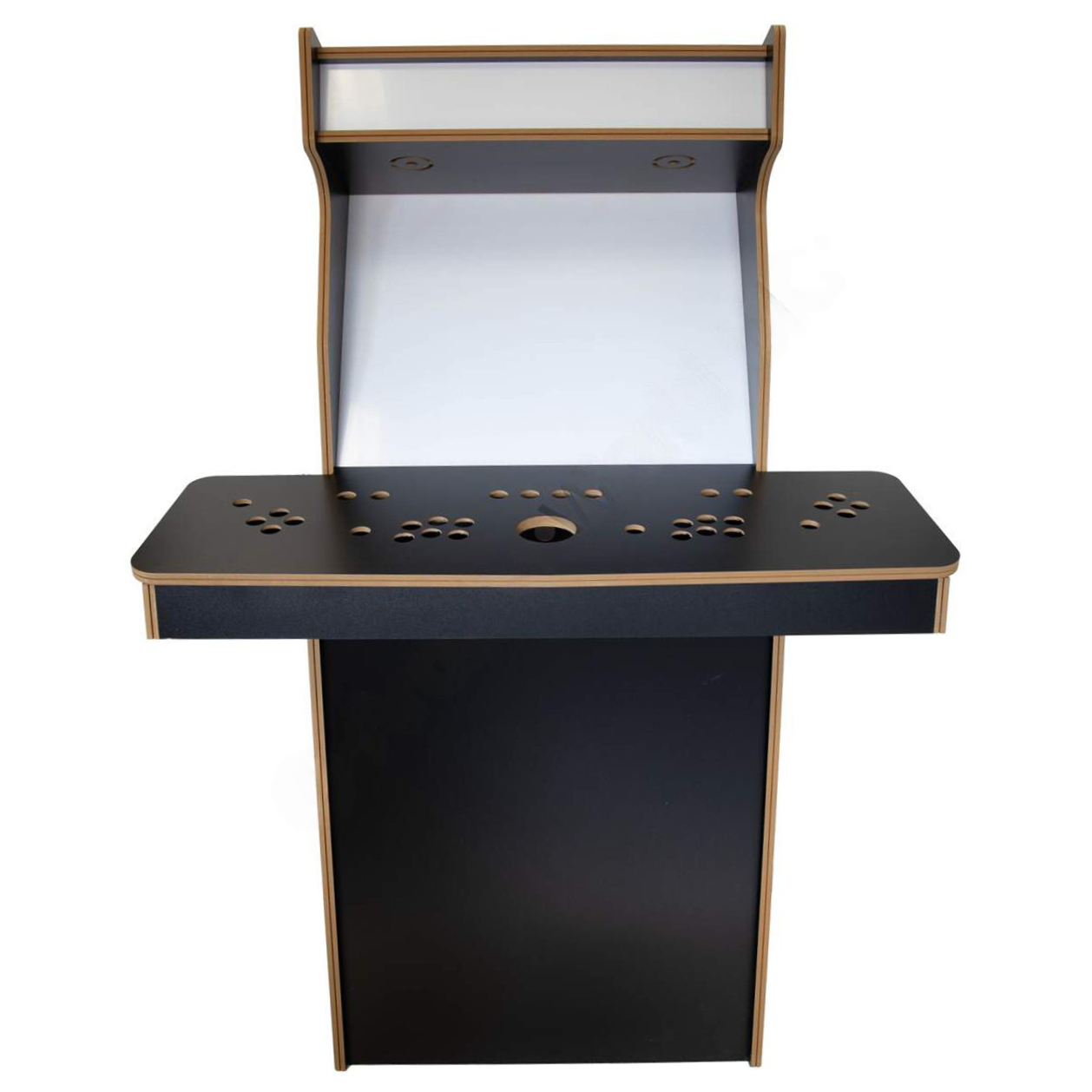

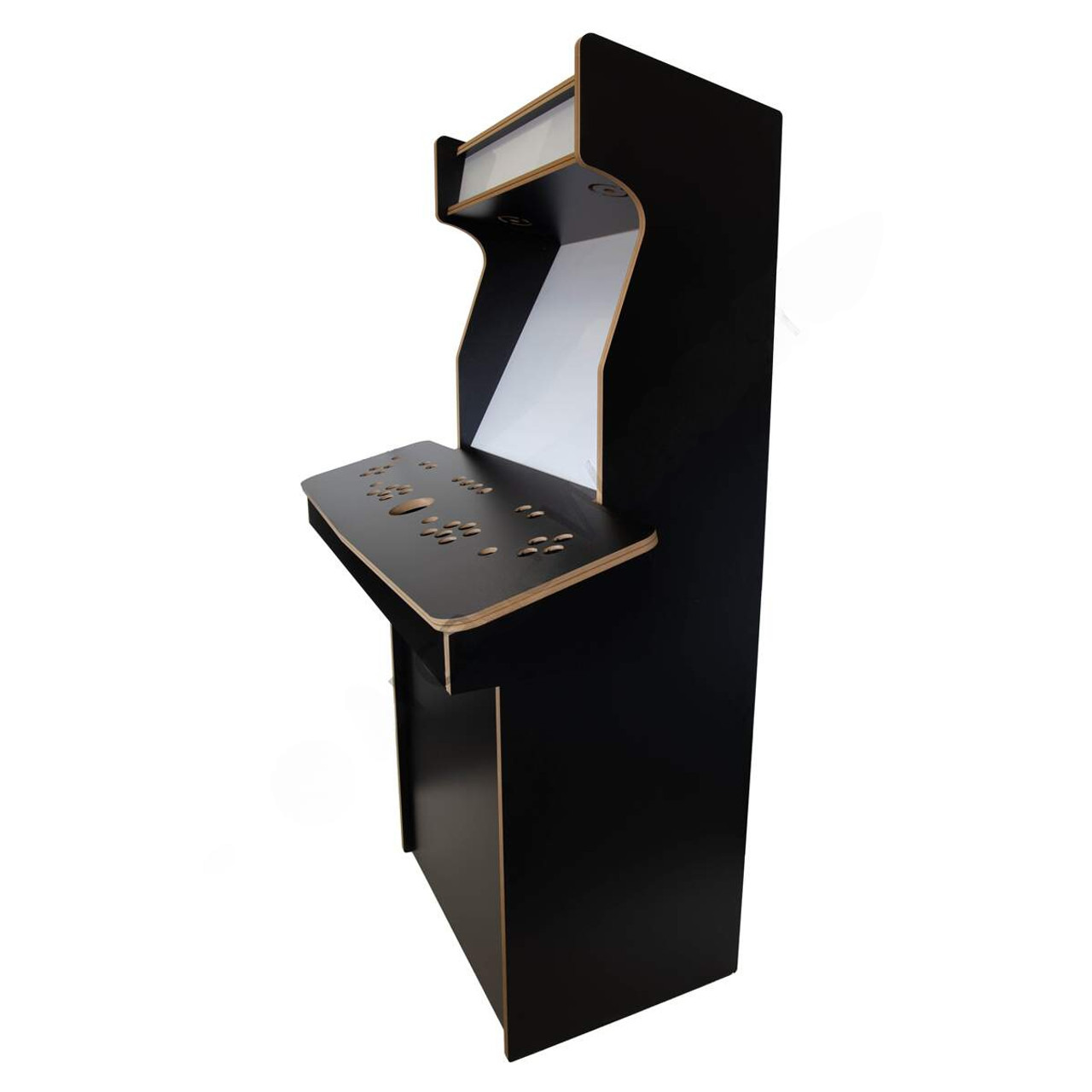

4 Player 32" Black Upright Arcade Cabinet Kit – Flat Pack

We currently have a 2 week lead time on orders.

Features and Further Details:

This full size 4 player 32 Inch 4 player upright arcade cabinet kit is manufactured from 18mm and 12mm melamine faced MDF, and precision cut on a commercial CNC machine. The 4 player upright arcade cabinet is in a flat pack kit form, with detailed assembly instructions showing you step-by-step how to build the cabinet. All necessary screws and fixings are provided for the assembly process. The upright arcade cabinet is able to accommodate a maximum monitor size of 32 inches. An adjustable wooden VESA mount with monitor bolts are included with the flat pack kit.

The hinged control panel comes with the joystick and button holes pre-drilled for a 4 player layout. The button holes are 30mm in diameter, making the control panel compatible with many of the popular brands on the market, such as Seimitsu, Sanwa, Suzo, IL, Happ, and the classic arcade buttons. Snap in buttons are not compatible if bought with control panel plexi.

The joystick holes are recessed under the control panel, this allows for the most popular joysticks on the market to be easily installed. Popular compatible joysticks including Sanwa, Seimitsu, SuzoHapp, Zippyy and IL. We have also included bolts for the joystick.

Each upright arcade kit has been pre-slotted 1/16” (1.58mm), that fits 3/4” (19mm) t-molding (t-molding not included).

This 4 player 32 inch upright flat pack arcade cabinet kit also comes supplied with a 4mm thick polycarbonate plexi for the marquee and the monitor area.

Control Panel Options:

The arcade kit can be purchased with or without a clear plexi to protect your artwork. Joystick and button holes are pre-cut.

You can also order this kit with a blank control panel or with a custom button layout. Leave a note in the customer comments section during checkout.

Feature Summary:

• The kit is built in two sections (top and bottom), and joined to form a full size upright.

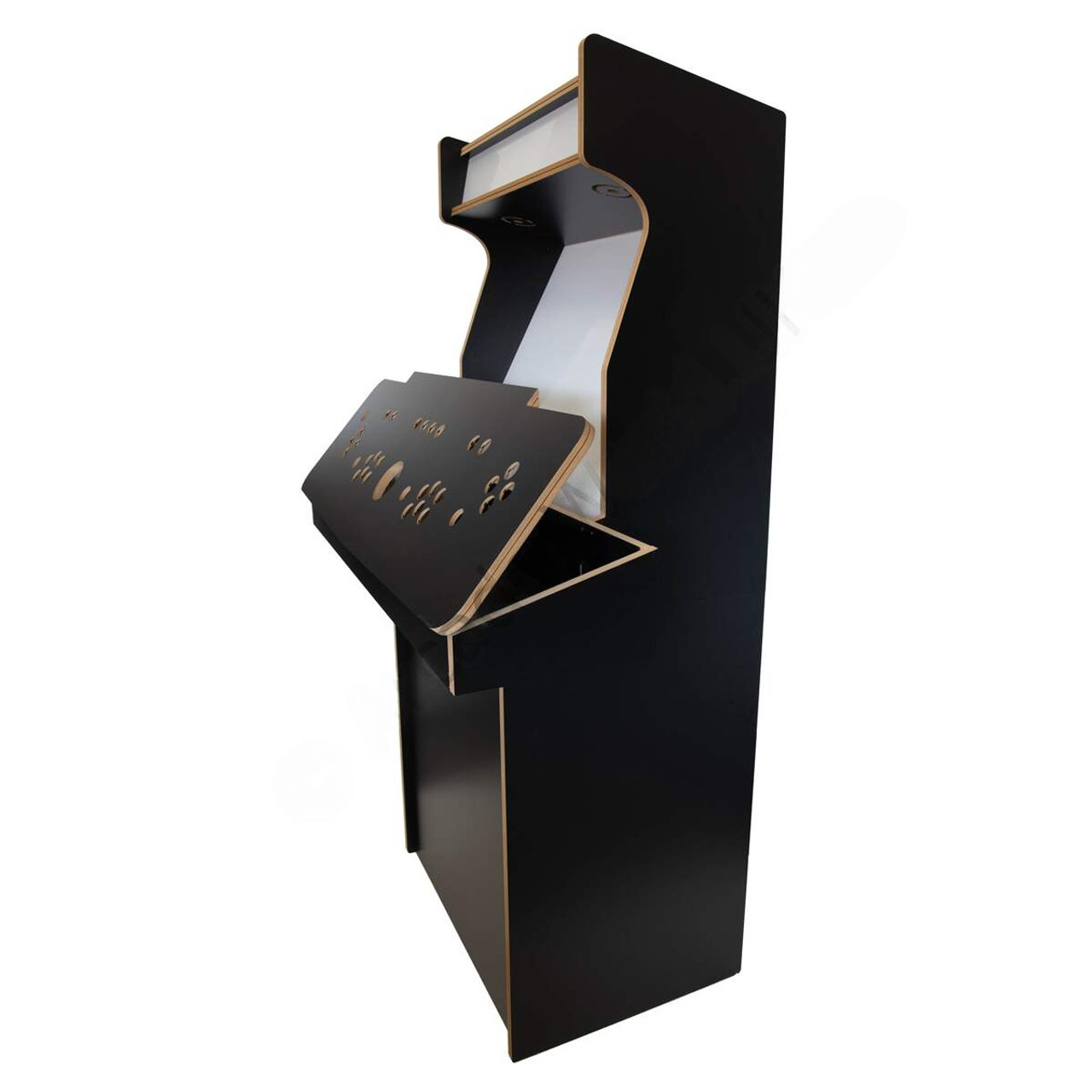

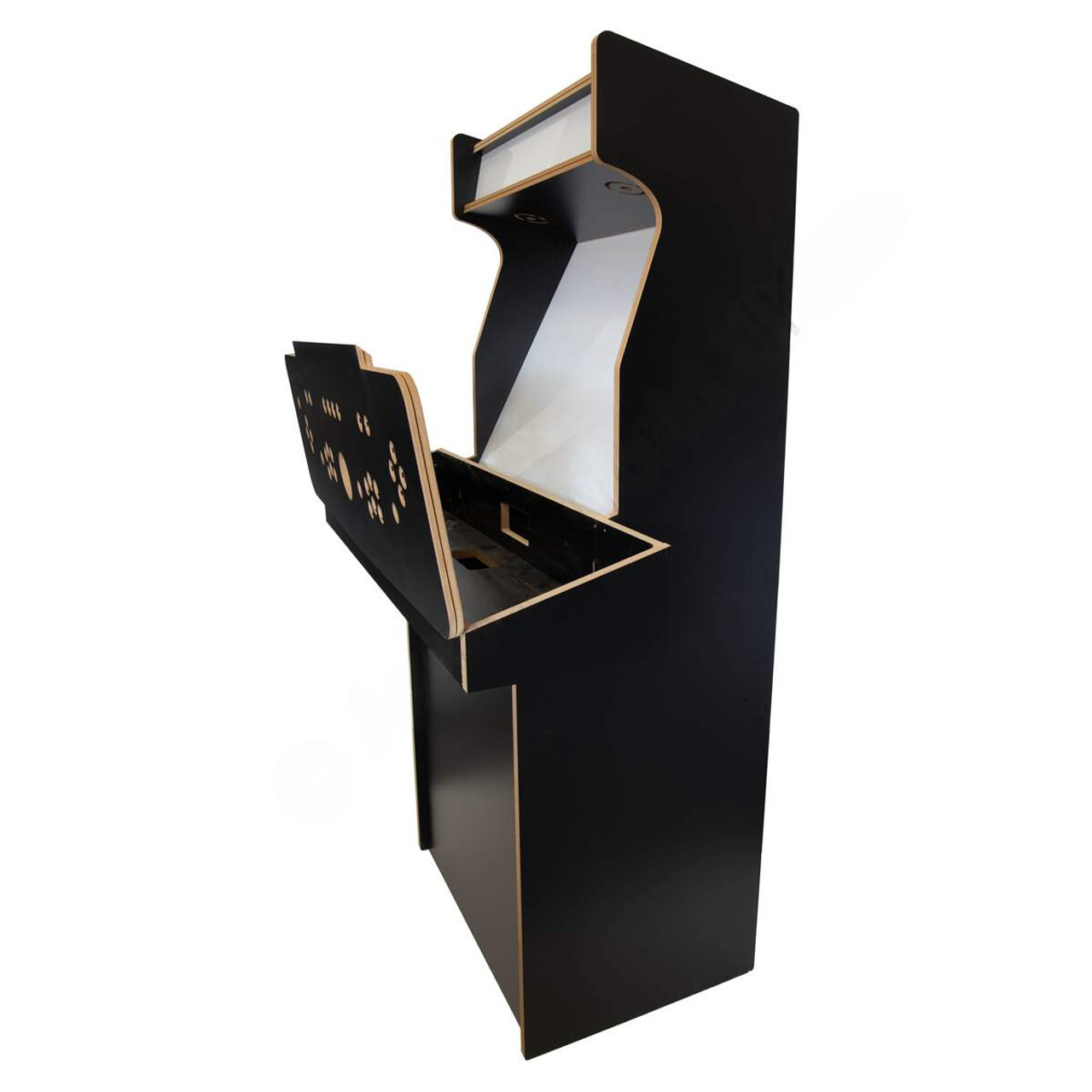

• Hinged control panel for easy access to arcade components

• Internal shelf to store hardware components

• Adjustable monitor VESA mount bracket, made from MDF. Monitor bolts included

• Supplied with 4mm thick polycarbonate plexi for marquee and monitor area

• Pre-cut cut hole at back for inlet power switch (not included)

• All assembly fixings and instruction manual included for self assembly

• Joystick bolts are included

• Suitable for various arcade components, including JAMMA and Raspberry Pi

• T-Molding slots are pre-cut

• Compatible with a 32" monitor

• Popular buttons such as Sanwa and Seimitsu can be installed

• Joysticks such as Sanwa and Seimitsu are compatible

• Supplied in a flat pack form for easy self assembly

• The sides, top panel, speaker panel and control panel are 18mm, other panels are 12mm. Once built the 12mm is not noticeable and does not affect rigidity in any way.

Assembled Dimensions:

116cm (Width) x 68cm (Depth) x 168.5cm (Height)

Monitor plexi size - 77cm x 61.4cm

Marquee size - 11cm x 77cm x 4mm

Monitor Compatibility:

Compatible with VESA 75mm and 100mm square hole configuration and 200mm x 100mm

Accommodates monitors up to a 32" size with the following maximum dimensions:

• 55cm height - Maximum OUTER height

• 76cm width - Maximum OUTER width

Joystick Compatibility:

Most popular joysticks will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Zippyy and illuminated joysticks. This kit is compatible with ServoStik joysticks, please let us know if you will be using this joystick.

Button Compatibility:

Most popular arcade buttons will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Gold Leaf and illuminated. Snap in buttons are not compatible if bought with control panel plexi.

Number of player buttons and joystick holes:

4 x Joystick holes (1 per player)

20 x Player button holes (2 x 6 per player - 2 x 4 per player)

8 x Admin button holes

Speaker Compatibility:

The speaker holes are designed to fit a speaker with mounting holes 75mm apart or bigger.

T-Molding Required:

Compatible with 3/4” (19mm) T-Molding, that fits a 1/16” (1.58mm) slot.

You will require 35ft (10.8m) of T-Molding to complete the arcade kit.

• Main body - 21ft

• Control panel lid - 10ft

• Control panel sides - 4ft

Please note that gaming hardware is not included. You will need to buy the hardware separately.
