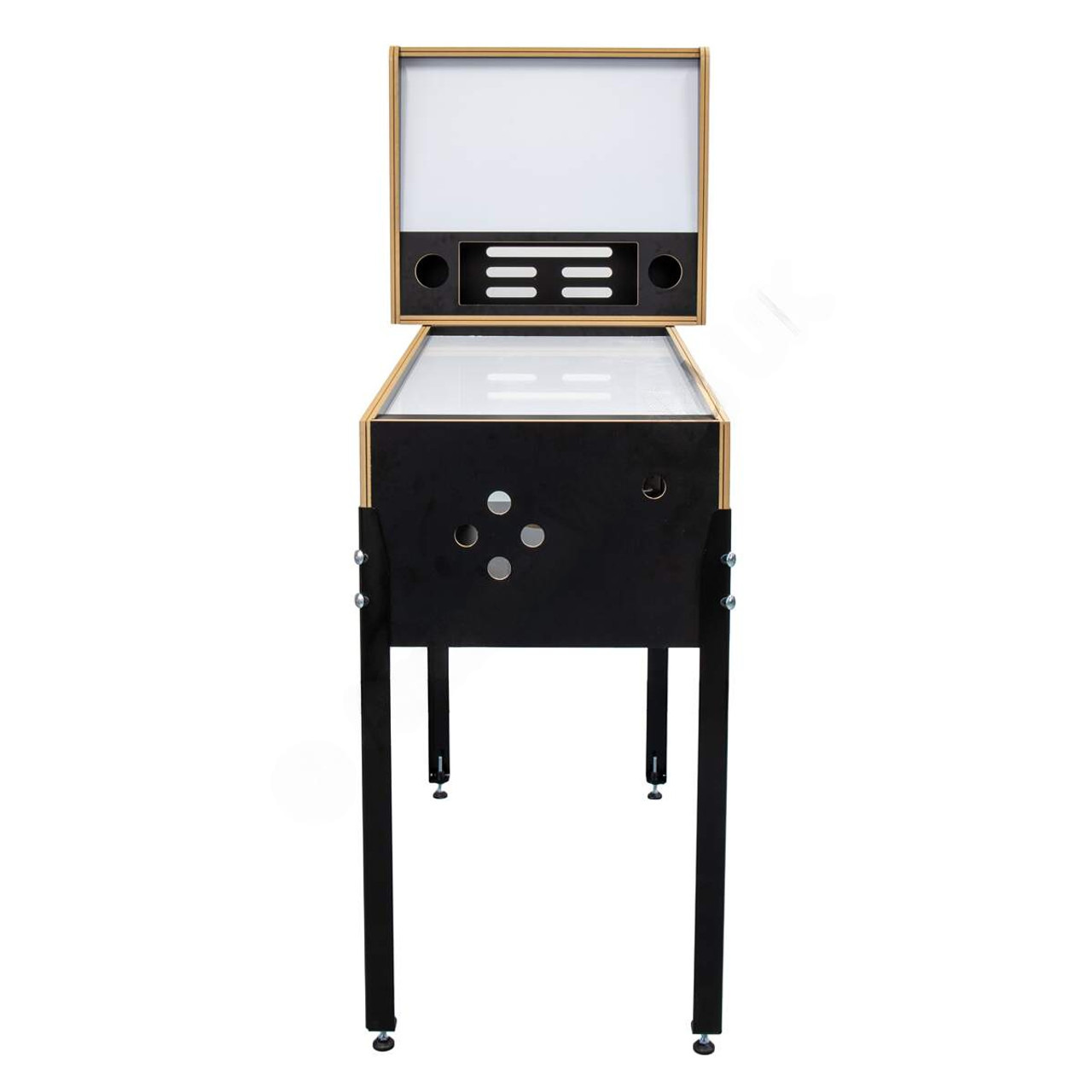

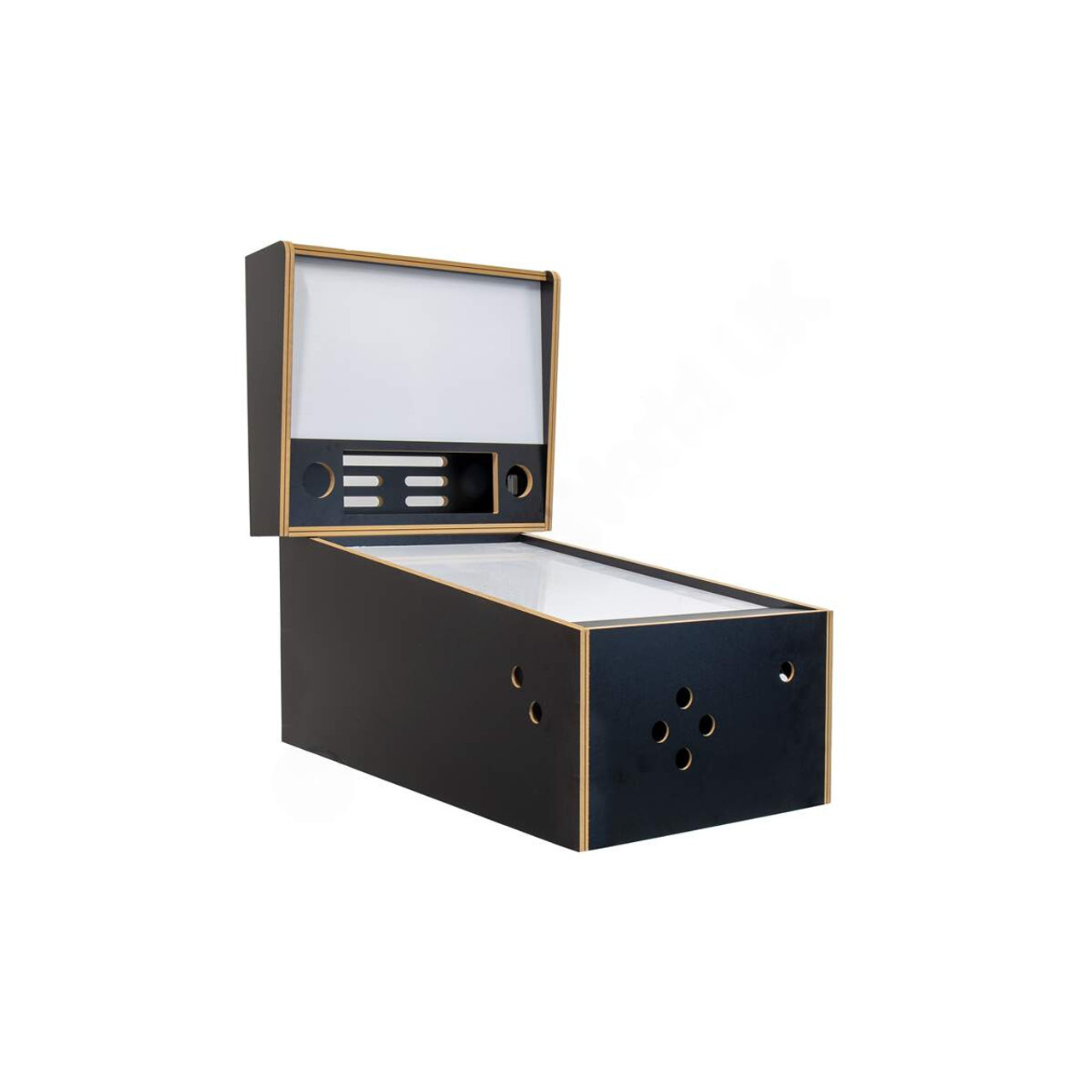

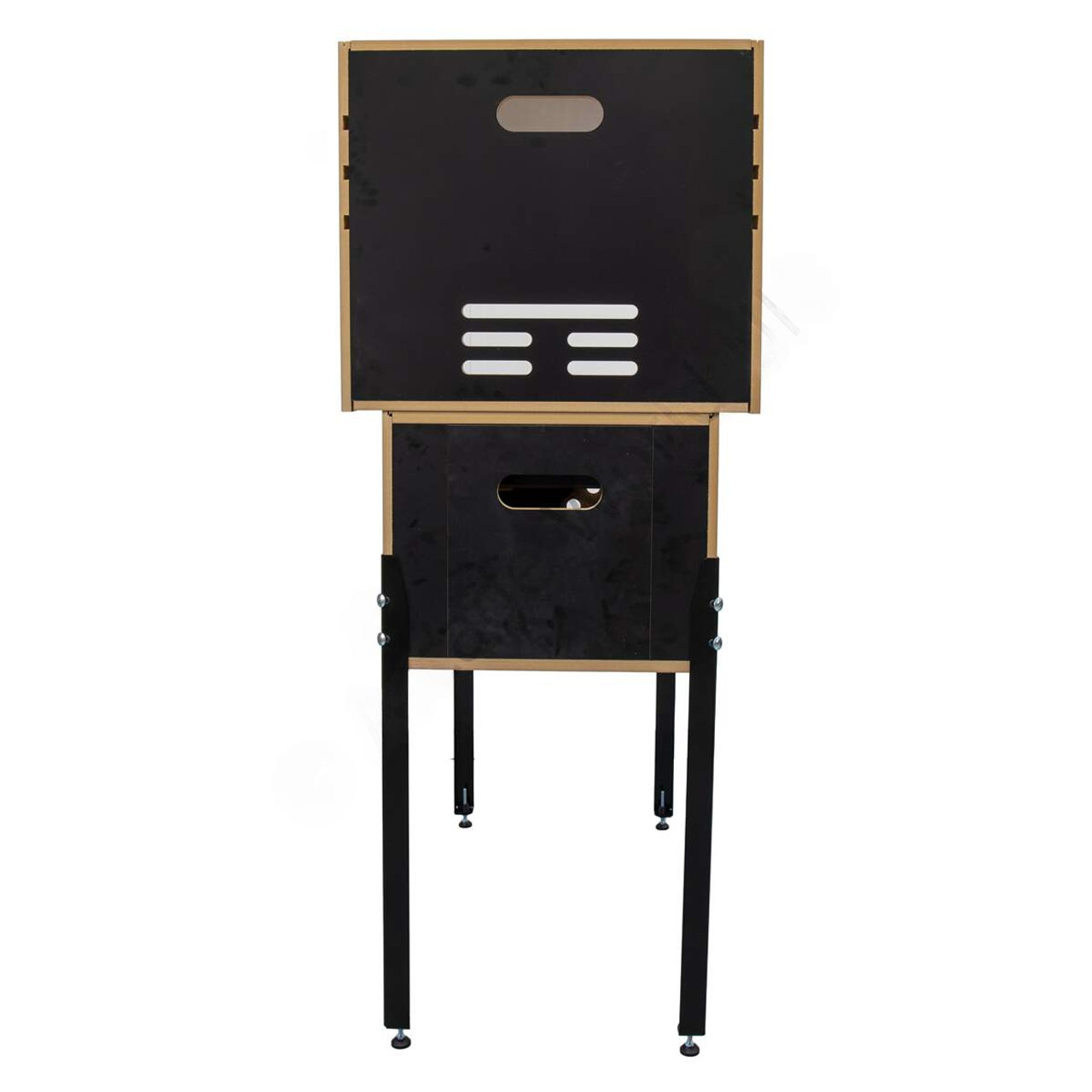

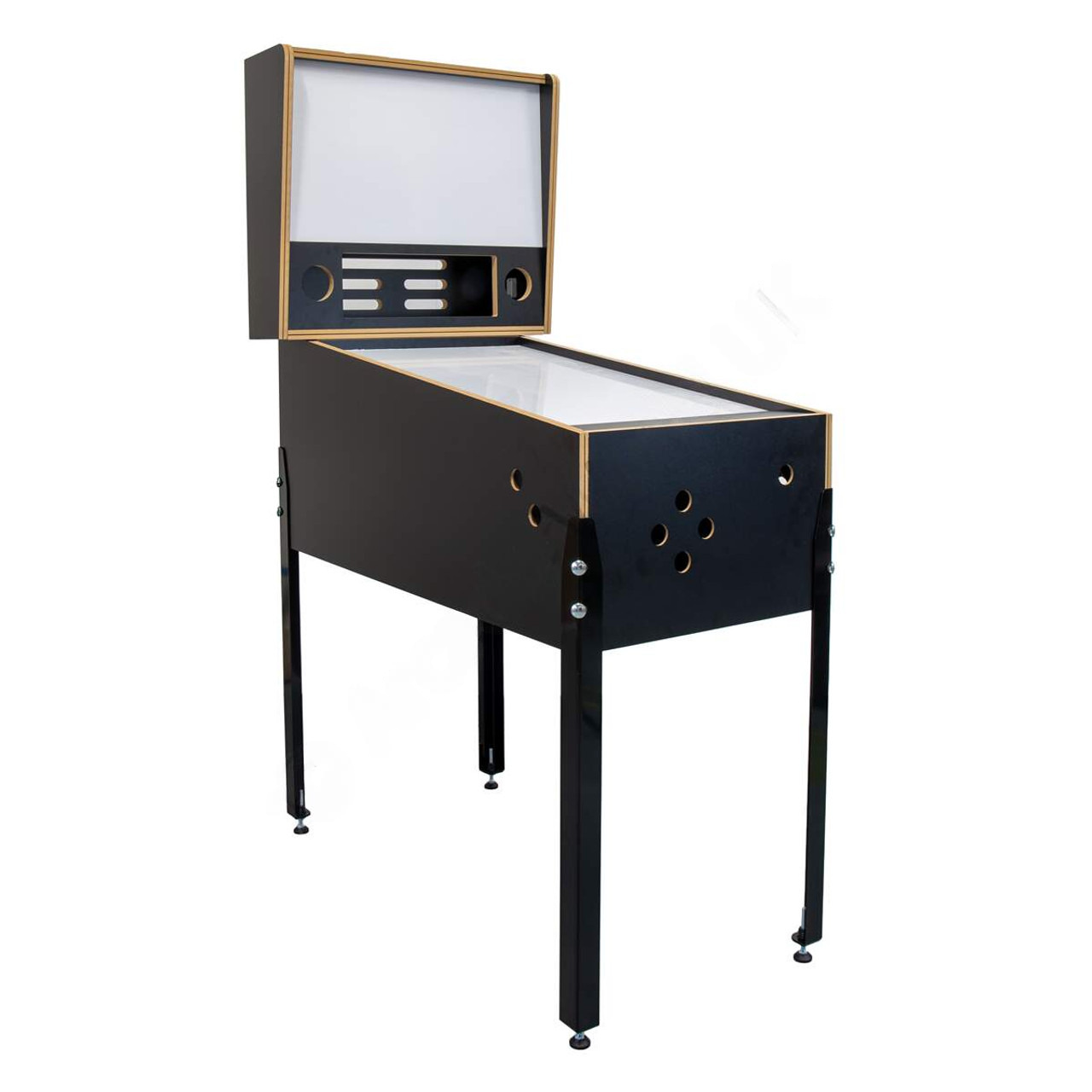

32" Pinball Arcade Cabinet Kit Black - Flat Pack

We currently have a 2 week lead time on orders.

Features and Further Details:

This flat pack pinball arcade cabinet kit is manufactured from 18mm melamine faced MDF, and precision cut on a commercial CNC machine. The pincab arcade cabinet is in a flat pack kit form, with detailed assembly instructions showing you step-by-step how to build the cabinet. All necessary screws and fixings are provided for the assembly process. The pinball arcade cabinet is able to accommodate a maximum monitor play field area size of 32 inches, and is height adjustable. The backbox can accommodate a monitor of up to 22 inches. A wooden VESA mount with monitor bolts are included with the flat pack kit for both the play area and backbox.

The pinball arcade machine has been pre-slotted 1/16” (1.58mm), that fits 3/4” (19mm) t-molding (t-molding not included).

Note: Although not depicted in the images, corner holes have been added to accommodate standard pinball legs and brackets, such as Stern or Bally legs.

Feature Summary:

• Flat pack pinball arcade cabinet kit

• Plexi set included

• Monitor VESA mount bracket, made from MDF. Monitor bolts included

• All assembly fixings and instruction manual included for self assembly

• Suitable for various arcade components

• T-Molding slots are pre-cut

• Compatible up to 32" monitor for the play area

• Popular buttons such as Sanwa and Seimitsu can be installed

• Supplied in a flat pack form for easy self assembly

Assembled Dimensions:

92cm (overall height excluding legs)

Main Body - 39.6cm (height) x 48cm (width) x 95cm (length)

Main Body and Back Box - 92cm (height) x 59.8cm (width) x 95cm (length)

Monitor Compatibility:

Compatible with VESA 75mm and 100mm square hole configuration and 200mm x 100mm

Playfield: compatible with up to a 32” monitor or TV with the following maximum OUTER dimensions of: 75cm (length) x 44.2cm (width)
Backbox: compatible with up to a 22” monitor with the following maximum OUTER dimensions: 56cm (wide) x 33cm (high)

DMD Area:

The viewable area between speaker holes is 12cm (height) x 34cm (width)

This can be adjusted or removed if requested.

Additional Note:

There are two 10cm holes cut out on the base of the cabinet. These are for ventilation and can be left open or fitted with fans if required.

Button Compatibility:

Most popular arcade buttons will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Gold Leaf and illuminated.

Number of button holes

4 x Player button holes (2 per side)

1 x Release/start hole

4 x Option/navigation button holes

Power Supply Compatibility:

There is a hole located in the base of the cabinet to accommodate an inlet socket switch if required. Alternatively, power cables can be fed through this hole.

Speaker Compatibility:

The speaker holes are designed to fit 3.3" speakers.

T-Molding and Pre-slotted panels:

Compatible with 3/4” (19mm) T-Molding, that fits a 1/16” (1.58mm) slot. You will require 23ft (7m) of T-Molding to complete the arcade kit.

Please note that gaming hardware is not included. You will need to buy the hardware separately.
