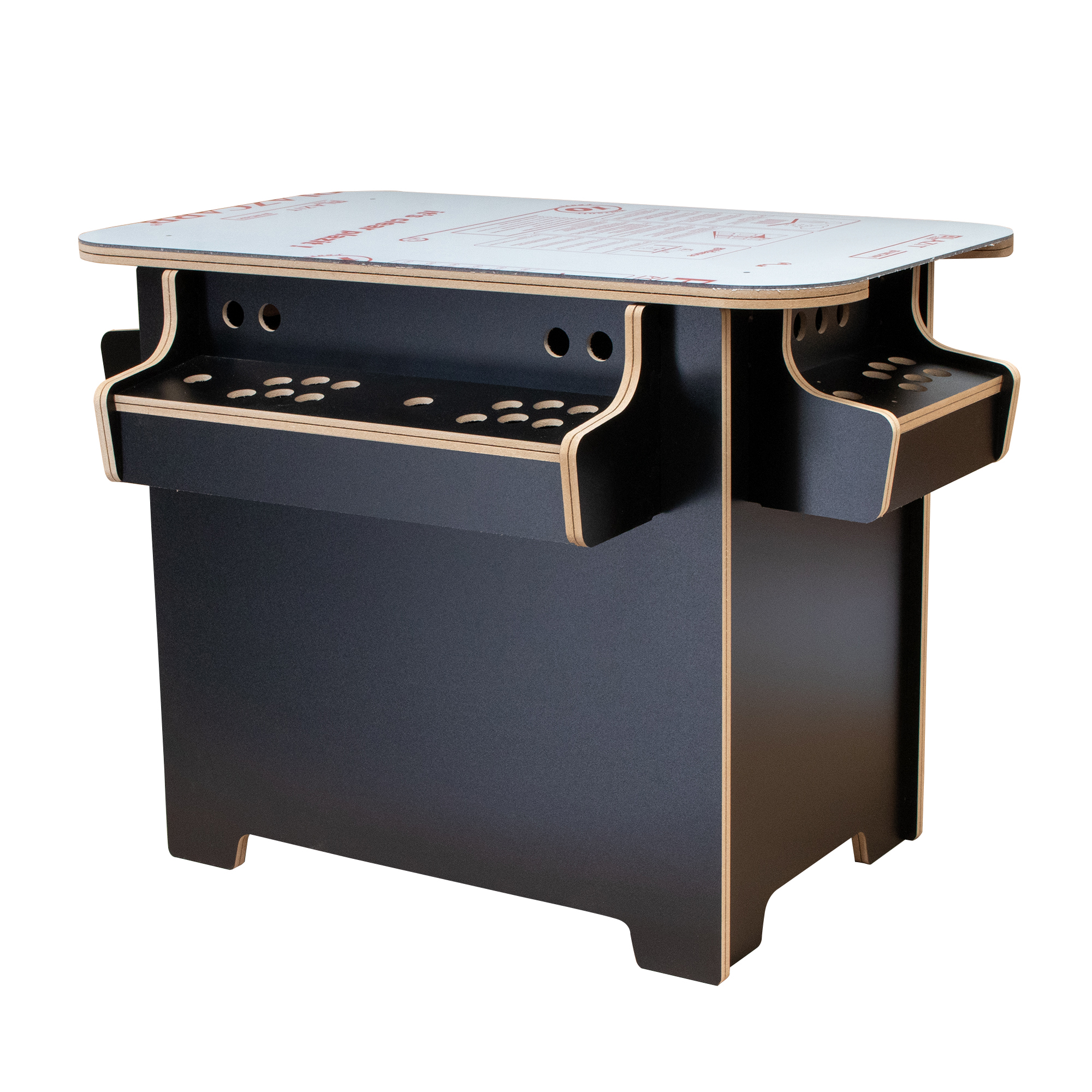

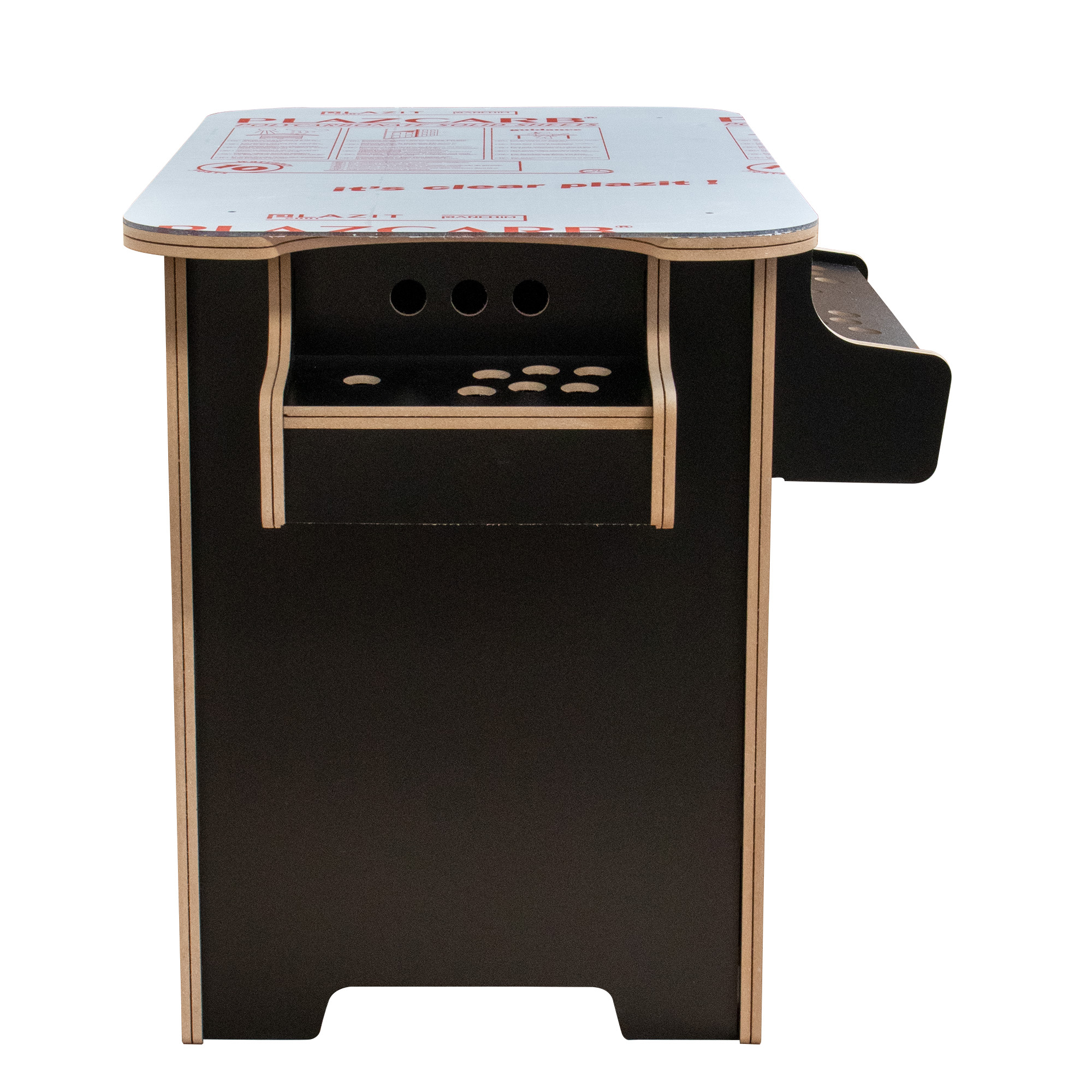

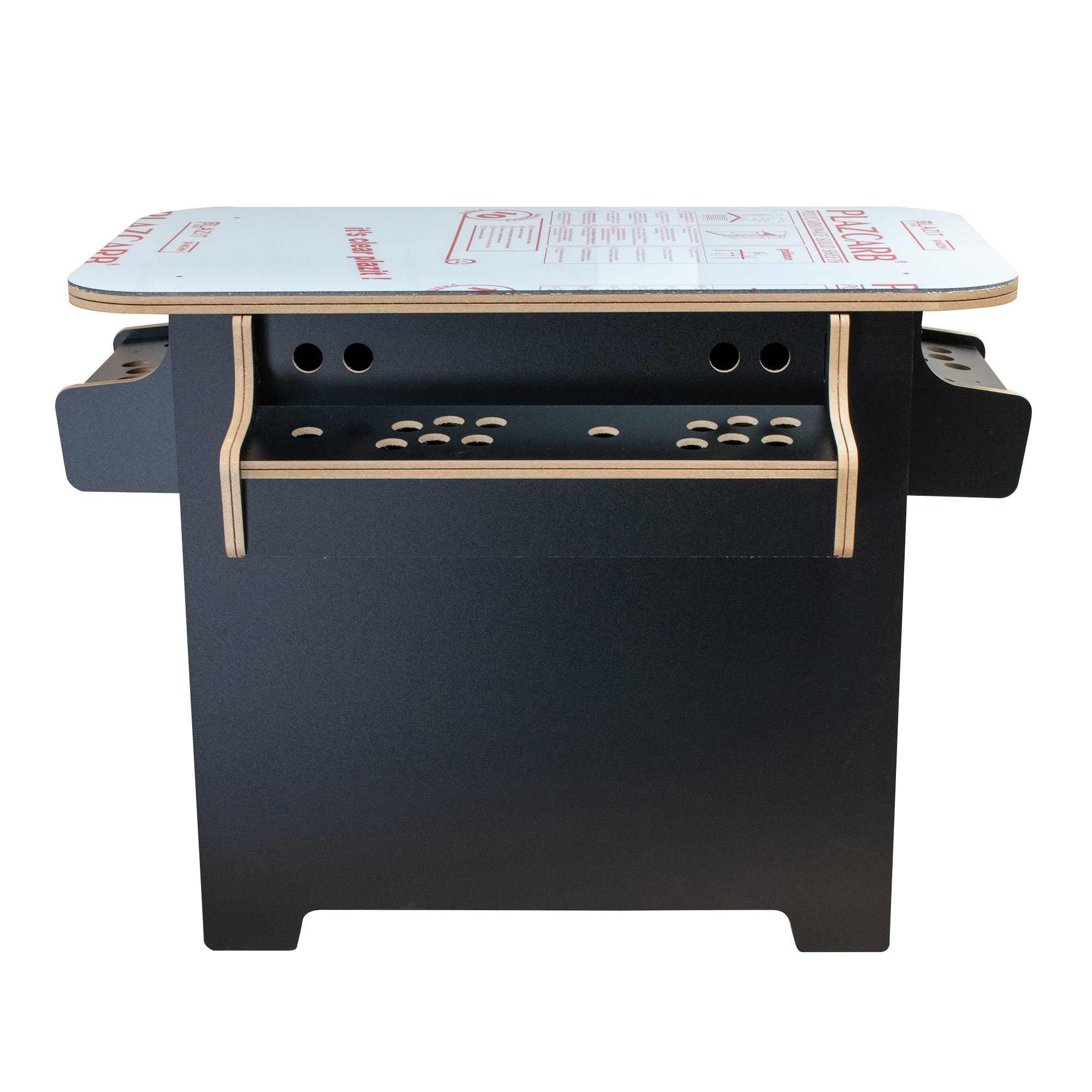

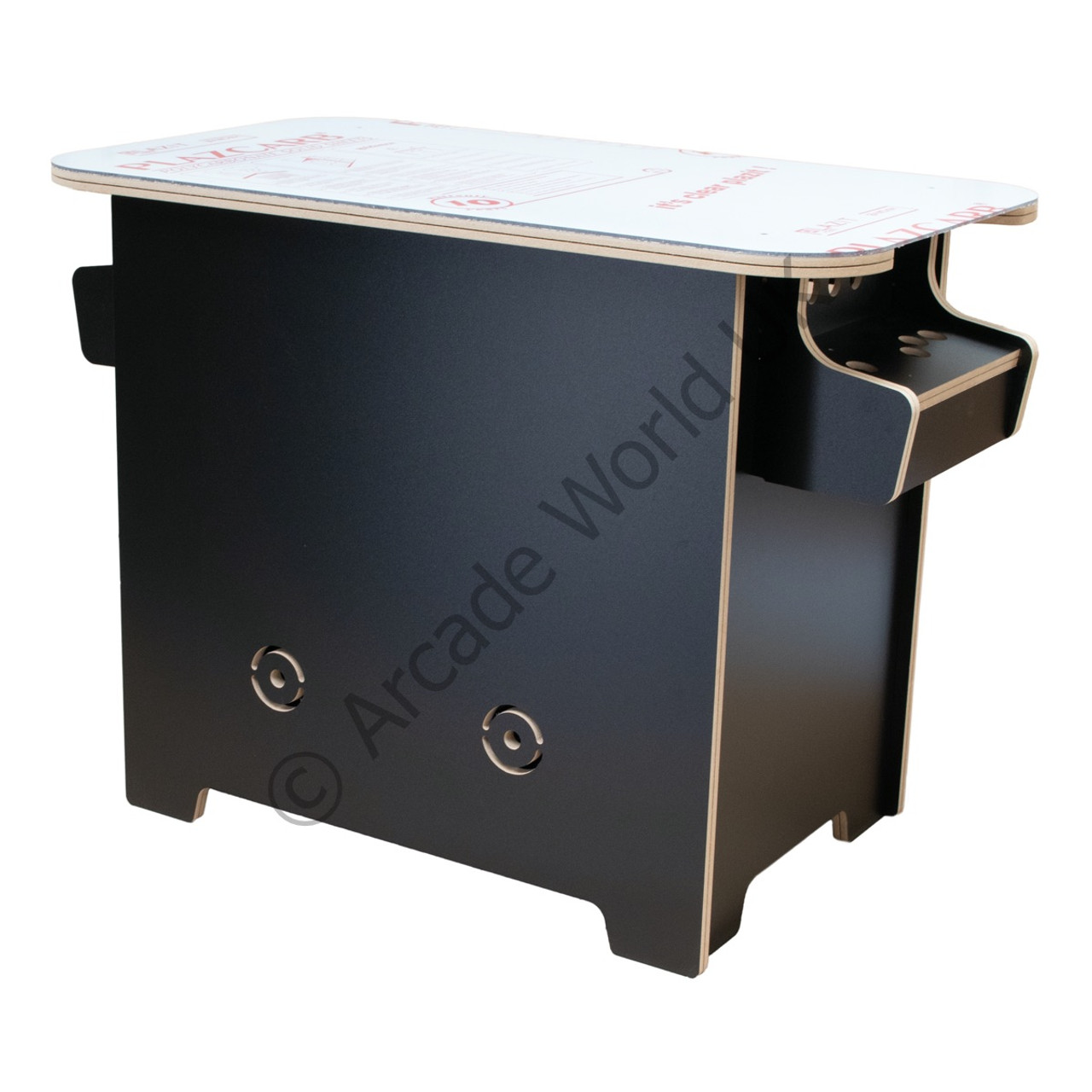

27 Inch 4 Player Arcade Cocktail Cabinet Kit Black - Flat Pack

We currently have a 2 week lead time on orders.

Features and Further Details:

This 27 Inch 4 player cocktail arcade cabinet kit is manufactured from 18mm melamine faced MDF, and precision cut on a commercial CNC machine. The cocktail arcade cabinet is in a flat pack kit form, with detailed assembly instructions showing you step-by-step how to build the cabinet. All necessary screws and fixings are provided for the assembly process. The cocktail arcade cabinet is able to accommodate a maximum monitor size of 27 inches. A height adjustable wooden VESA mount with monitor bolts are included with the flat pack kit.

Each control panel pod is pre-cut with joystick, player and admin holes. Number of holes per player can be found at the bottom of this listing. The button holes are 30mm in diameter, making the control panel compatible with many of the popular brands on the market, such as Seimitsu, Sanwa, Suzo, IL, Happ, and the classic arcade buttons.

The joystick holes are recessed under the control panel, this allows for the most popular joysticks on the market to be easily installed. Popular compatible joysticks including Sanwa, Seimitsu, SuzoHapp, Zippyy and IL. We have also included bolts for the joystick.

Each cocktail arcade kit has been pre-slotted 1/16” (1.58mm), that fits 3/4” (19mm) t-molding (t-molding not included).

This 27 inch cocktail flat pack arcade cabinet kit also comes supplied with a 4mm thick polycarbonate plexi top for the monitor area.

Control Panel Options:

You can also order this kit with a blank control panel or with a custom button layout (for example, adding an extra hole for a SpinTrak spinner). Leave a note in the customer comments section during checkout.

Feature Summary:

• Height adjustable monitor VESA mount bracket, made from MDF. Monitor bolts included

• Supplied with 4mm thick polycarbonate plexi for the monitor area

• Pre-cut cut hole at back for inlet power switch (not included)

• All assembly fixings and instruction manual included for self assembly

• Joystick bolts are included

• Suitable for various arcade components, including JAMMA and Raspberry Pi

• T-Molding slots are pre-cut

• Compatible with a 27" monitor

• Popular buttons such as Sanwa and Seimitsu can be installed

• Joysticks such as Sanwa and Seimitsu are compatible

• Supplied in a flat pack form for easy self assembly

Assembled Dimensions:

96cm (Width) x 56cm (Depth) x 72cm (Height)

Monitor Compatibility:

• Compatible with VESA 75mm and 100mm (Screws and washers are included)

• Compatible with up to a 27" monitor

• Hole dimension of 600mm x 340mm and a max monitor width of 665mm

Joystick Compatibility:

Most popular joysticks will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Zippyy and illuminated joysticks. This kit IS NOT compatible with ServoStik joysticks.

Button Compatibility:

Most popular arcade buttons will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Gold Leaf and illuminated.

Number of player buttons and joystick holes

4 x Joystick holes (1 per player)

18 x Player Button holes (3 per single pod player and 6 per double pod player)

10 x Admin Button holes (3 per single pod player and 2 per double pod player)

Speaker Compatibility:

The speaker holes are designed to fit a speaker with mounting holes 75mm apart or bigger.

T-Molding Required:

Compatible with 3/4” (19mm) T-Molding, that fits a 1/16” (1.58mm) slot. You will require 44ft (13.5m) of T-Molding to complete the arcade kit.

Please note that gaming hardware is not included. You will need to buy the hardware separately.
