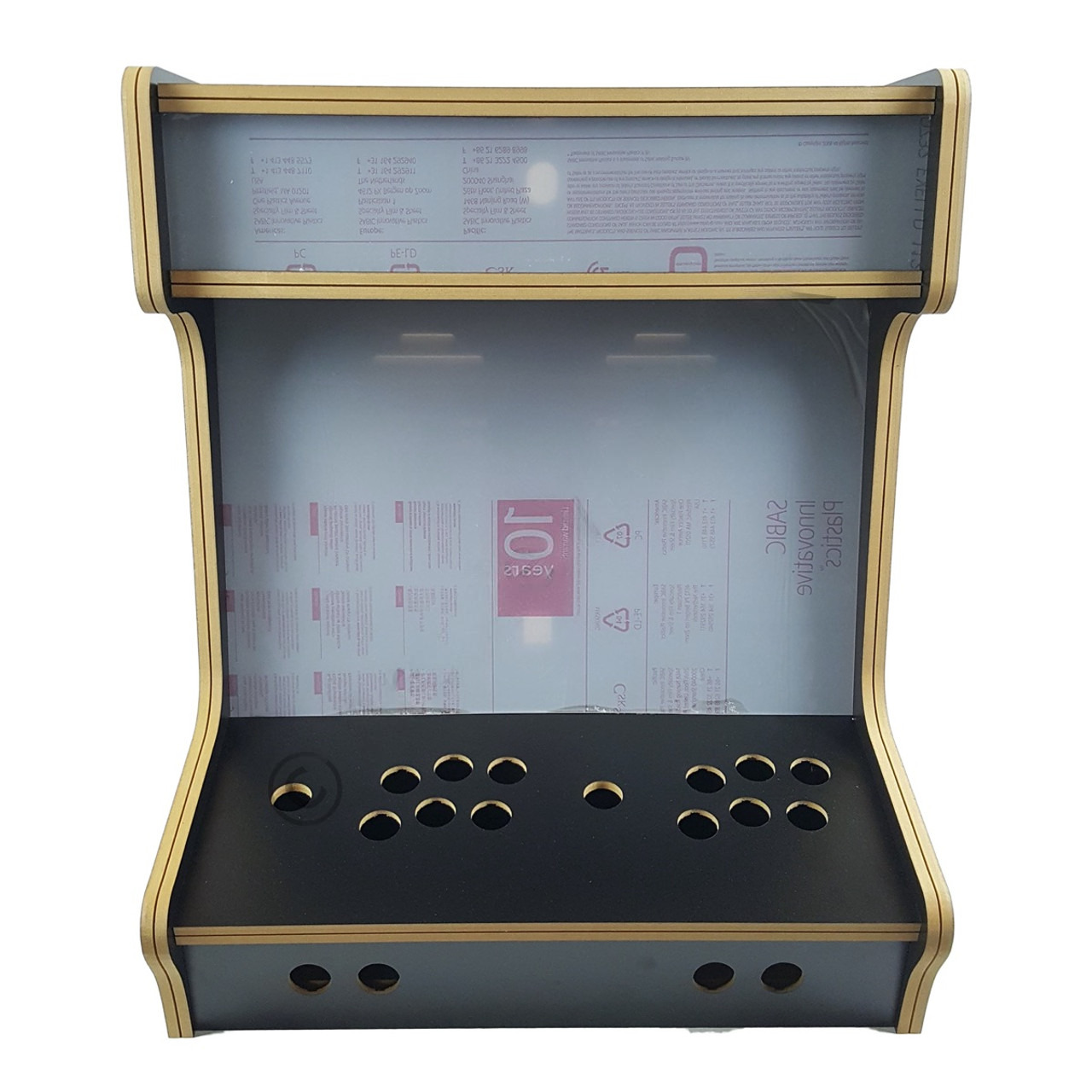

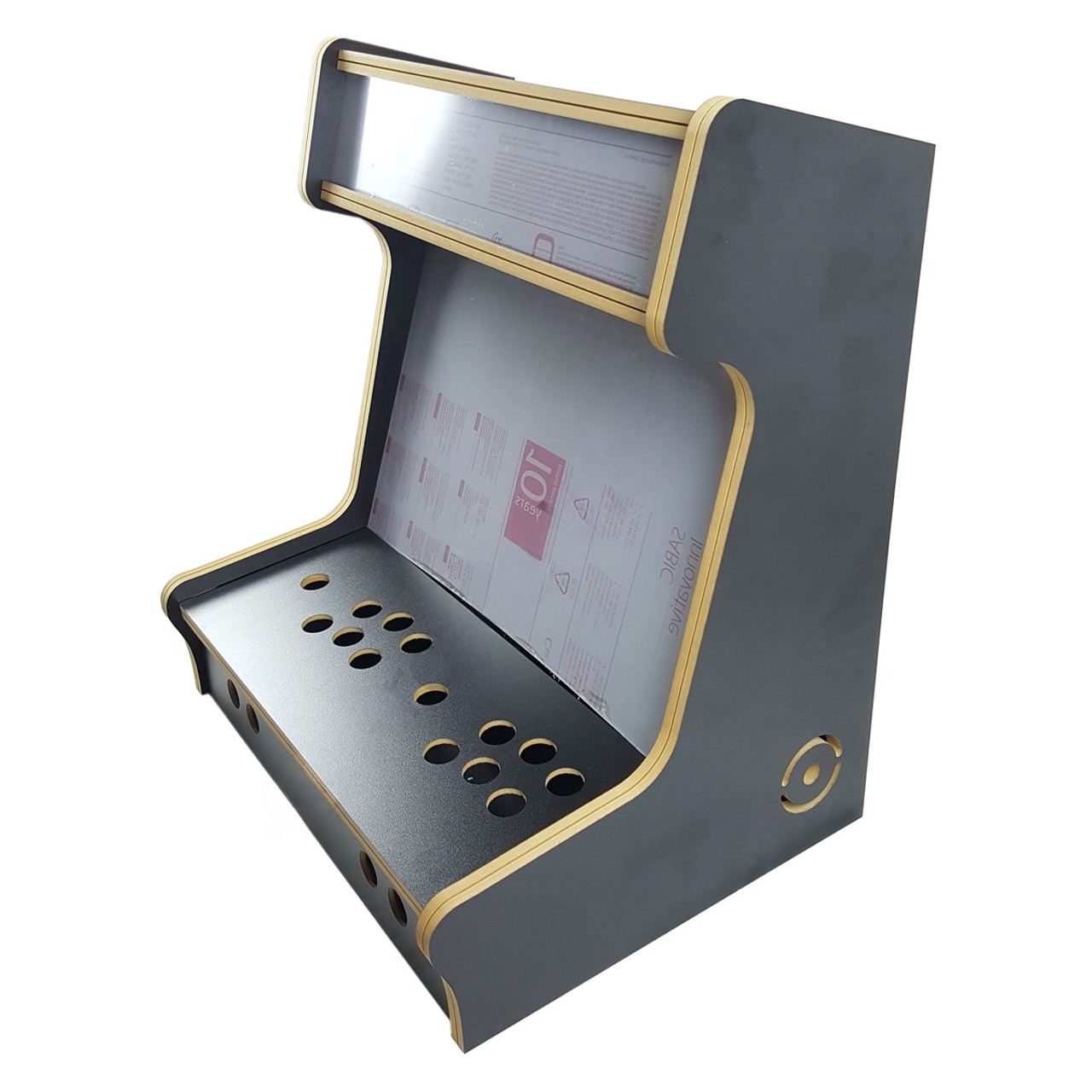

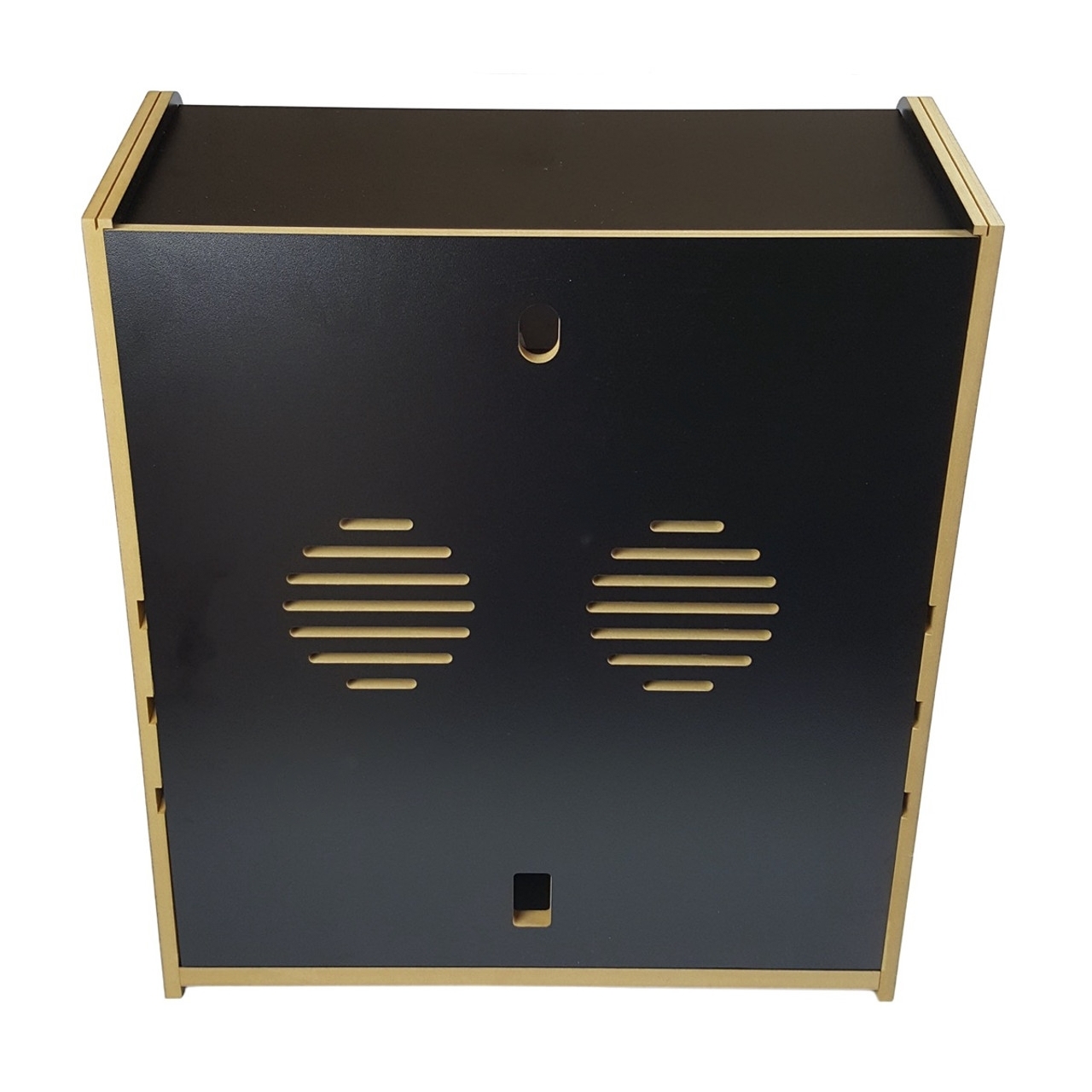

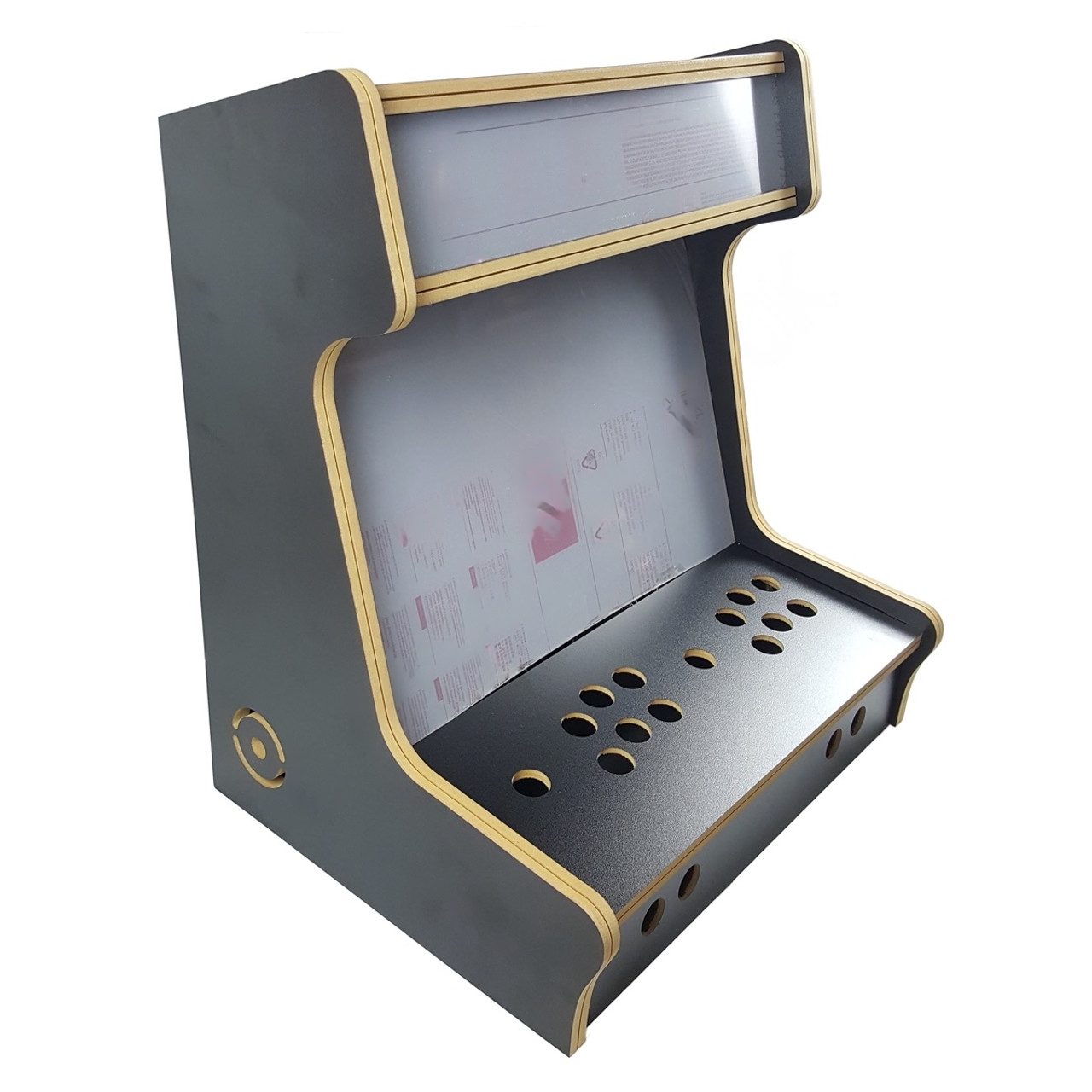

19" Black Bartop Arcade Cabinet Kit – Flat Pack

We currently have a 2 week lead time on orders.

Features and Further Details:

The 19 Inch 2 player bartop arcade cabinet is manufactured from 18mm melamine faced MDF and precision cut on a commercial CNC machine. The arcade cabinet is in a flat pack kit form, with detailed assembly instructions showing you step-by-step how to build the cabinet. All necessary screws and fixings are provided for the assembly process. The bar top cabinet is able to accommodate a maximum monitor size of 19 inches. An adjustable wooden VESA mount with monitor bolts are included with the flat pack kit.

The removable control panel comes with the joystick and button holes pre-drilled for a 2 player layout. The button holes are 30mm in diameter, making the control panel compatible with many of the popular brands on the market, such as Seimitsu, Sanwa, Suzo, IL, Happ, and the classic arcade buttons. Snap in buttons are not compatible if bought with control panel plexi.

The joystick holes are recessed under the control panel with screw inserts already added, this allows for the most popular joysticks on the market to be easily installed. Popular compatible joysticks including Sanwa, Seimitsu, SuzoHapp, Zippyy and IL. We have also included bolts for the joystick.

Each arcade kit has been pre-slotted 1/16” (1.58mm), that fits 3/4” (19mm) t-molding (t-molding not included).

This 19 inch bartop flat pack arcade cabinet kit also comes supplied with a 4mm thick polycarbonate plexi for the marquee and the monitor area.

Control Panel Options:

The arcade kit can be purchased with or without a clear plexi to protect your artwork. Joystick and button holes are pre-cut.

You can also order this kit with a blank control panel or with a custom button layout. Leave a note in the customer comments section during checkout.

Feature Summary:

• Removable control panel for easy access to arcade components

• Adjustable monitor VESA mount bracket, made from MDF. Monitor bolts included

• Supplied with 4mm thick polycarbonate plexi for marquee and monitor area

• All assembly fixings and instruction manual included for self assembly

• Joystick bolts are included

• Pre-cut cut hole at back for inlet power switch (not included)

• Suitable for various arcade components, including JAMMA and Raspberry Pi

• T-Molding slots are pre-cut

• Compatible with a 19" monitor

• Popular buttons such as Sanwa and Seimitsu can be installed

• Joysticks such as Sanwa and Seimitsu are compatible

• Supplied in a flat pack form for easy self assembly

Assembled Dimensions:

54.3cm (Width) x 43.3cm (Depth) x 63.6cm (Height)

Monitor Compatibility:

Compatible with VESA 75mm and 100mm hole configuration

Accommodates monitors up to a 19" size with the following maximum dimensions:

• 34cm height - Maximum VIEWABLE height

• 50cm width - Maximum OUTER width

• 7cm depth - Maximum OUTER depth

Joystick Compatibility:

Most popular joysticks will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Zippyy and illuminated joysticks. This kit IS NOT compatible with ServoStik joysticks.

Button Compatibility:

Most popular arcade buttons will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Gold Leaf and illuminated. Snap in buttons are not compatible if bought with control panel plexi.

T-Molding Required:

Compatible with 3/4” (19mm) T-Molding, that fits a 1/16” (1.58mm) slot. You will require 15ft (4.6m) of T-Molding to complete the arcade kit.

Please note that gaming hardware is not included. You will need to buy the hardware separately.
